Description

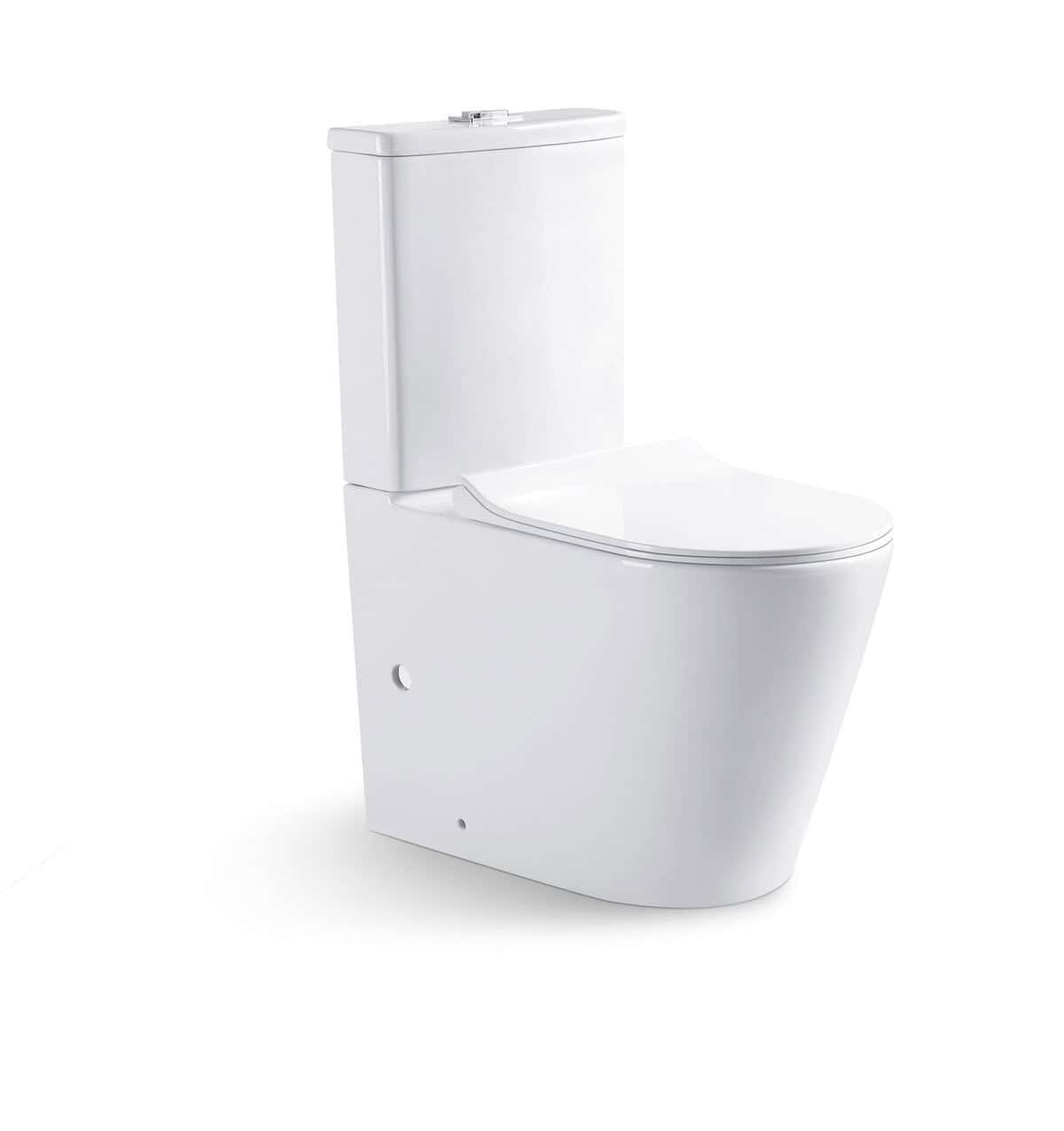

The EXON Toilet Suite arrives as one purchase — pan, cistern and seat together — so there is nothing left to match up afterwards and nothing to discover missing on the day it goes in.

Wall faced

The pan sits flat against the wall with no gap behind it and no exposed pipework. That removes the strip of floor behind a traditional pan that nothing reaches, which is the part everybody hates cleaning.

Tornado flush

Instead of dropping water down the front of the bowl, a tornado flush sends it around the bowl so it swirls. That scours the full surface on the way down rather than just the path the water happens to take, which is what lets a 4.5 litre flush do the work a 9 litre flush used to.

Top or bottom water inlet

This suite is offered with the water coming in at the top or at the bottom of the cistern, and that is a plumbing decision, not a style one. Look at where the existing stop tap sits. A bottom inlet suits a tap coming out of the wall low or up through the floor; a top inlet suits one that sits higher. Choosing the wrong one means a visible loop of pipe, or a plumber moving the tap.

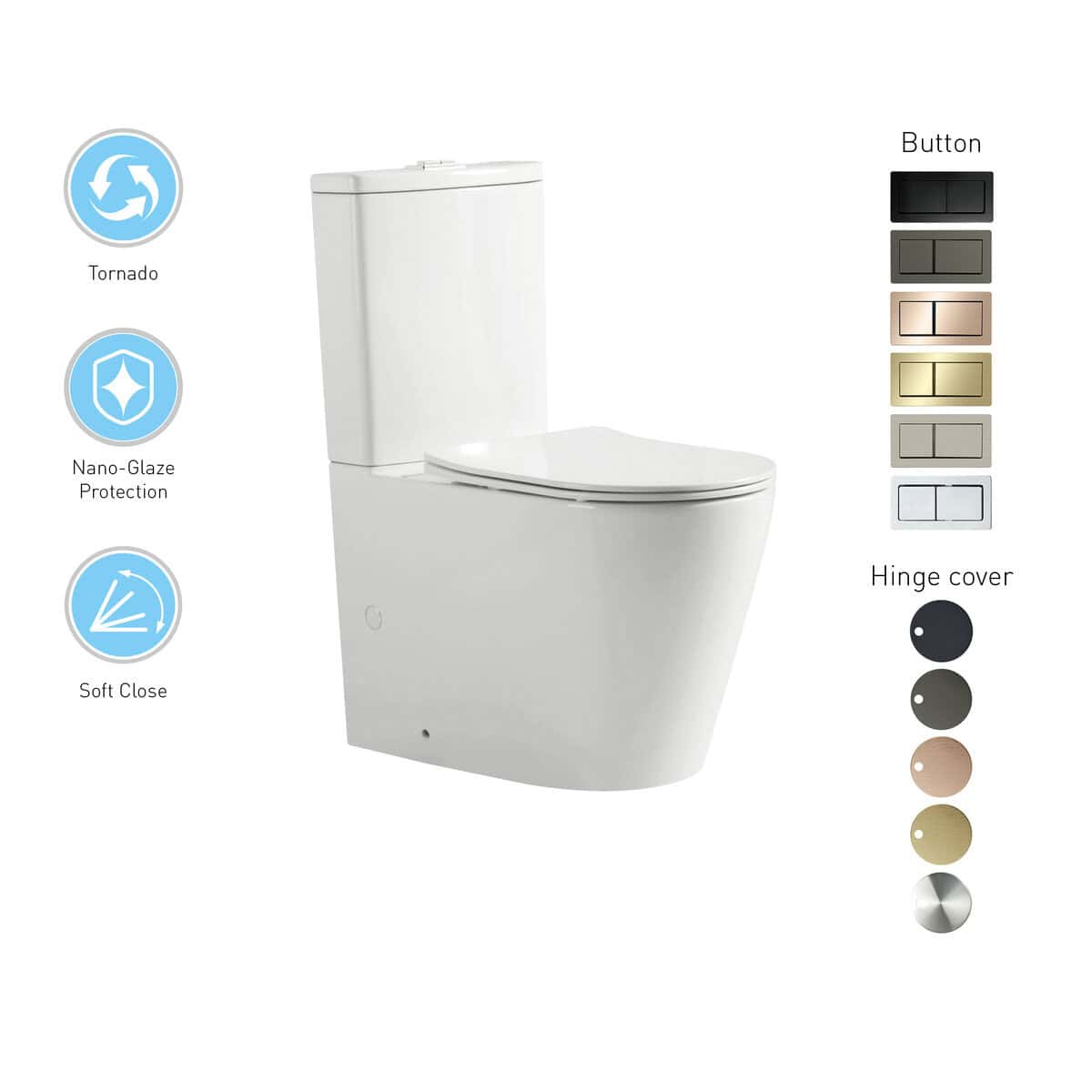

Choosing the button finish

The flush button is the one part of a toilet that gets touched every day, and it is the part that either matches the tapware or does not. Pick it against the mixer and the towel rail rather than against the pan — the ceramic is white either way.

Standard or matching hinge covers

The hinge covers are the caps where the seat bolts to the pan. Standard leaves them plain. Matching picks up the button finish, so the black or brass carries from the button through to the seat instead of stopping halfway. It is a small thing that is very obvious once you have seen it done both ways.

Set-out — measure this before you order

The set-out is the distance from the finished wall to the centre of the waste in the floor. Get it wrong and the pan will not sit against the wall, and there is no adjusting it once the floor is tiled.

An S-trap goes down through the floor. A P-trap goes back through the wall. Measure what you have before you order, and if you are unsure, take a photo of the waste with a tape across it and send it to us.

Water rating

4 star WELS, 4.5 litres on a full flush and 3 litres on a half. Four stars is the practical ceiling for a dual flush toilet in Australia, so this is as low as a normal suite goes on water.

Specifications

• Type — wall faced, tornado flush
• Material — ceramic
• Inlet — bottom right hand, or back
• Set-out — 100 to 200mm adjustable (S-trap), 180mm (P-trap)
• Cistern weight — 15kg
• Pan weight — 45kg
• Water rating — 4 star WELS, 4.5L full flush / 3L half flush
• Flush button finishes — chrome, matte black, gun metal, brushed nickel, brushed brass or champagne copper
• Toilet hinge covers — standard, or matching the button finish
• Seat — included
• WELS registration — L05172
• Warranty — 15 years on the ceramic, 3 years on the valves
