Description

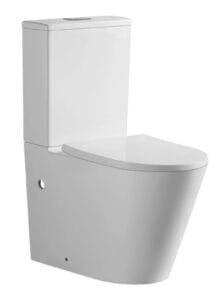

The JAMIE-II Toilet Suite arrives as one purchase — pan, cistern and seat together — so there is nothing left to match up afterwards and nothing to discover missing on the day it goes in.

Wall faced

The pan sits flat against the wall with no gap behind it and no exposed pipework. That removes the strip of floor behind a traditional pan that nothing reaches, which is the part everybody hates cleaning.

Rimless

A traditional pan hides the water channel under a lip that runs around the inside of the bowl. Rimless does away with it — the water is directed around an open bowl instead. There is no lip to reach up under with a brush, which is where the staining and the smell usually start in an older toilet. It is the single biggest change to toilet design in the last twenty years, and it is a cleaning decision rather than a flushing one.

Choosing the button finish

The flush button is the one part of a toilet that gets touched every day, and it is the part that either matches the tapware or does not. Pick it against the mixer and the towel rail rather than against the pan — the ceramic is white either way.

Standard or matching hinge covers

The hinge covers are the caps where the seat bolts to the pan. Standard leaves them plain. Matching picks up the button finish, so the black or brass carries from the button through to the seat instead of stopping halfway. It is a small thing that is very obvious once you have seen it done both ways.

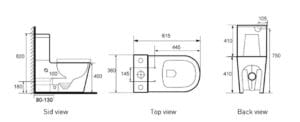

Set-out — measure this before you order

The set-out is the distance from the finished wall to the centre of the waste in the floor. Get it wrong and the pan will not sit against the wall, and there is no adjusting it once the floor is tiled.

An S-trap goes down through the floor. A P-trap goes back through the wall. Measure what you have before you order, and if you are unsure, take a photo of the waste with a tape across it and send it to us.

Water rating

4 star WELS, 4.5 litres on a full flush and 3 litres on a half. Four stars is the practical ceiling for a dual flush toilet in Australia, so this is as low as a normal suite goes on water.

Specifications

• Type — wall faced, rimless
• Material — ceramic
• Inlet — back (left hand top), or bottom right hand
• Set-out — 100 to 180mm adjustable (S-trap), 180mm (P-trap)
• Cistern weight — 14kg
• Pan weight — 37kg
• Water rating — 4 star WELS, 4.5L full flush / 3L half flush
• Flush button finishes — chrome, matte black, gun metal, brushed nickel, brushed brass or champagne copper
• Toilet hinge covers — standard, or matching the button finish
• Seat — included
• WELS registration — LM05221
• Warranty — 15 years on the ceramic, 3 years on the valves
