Description

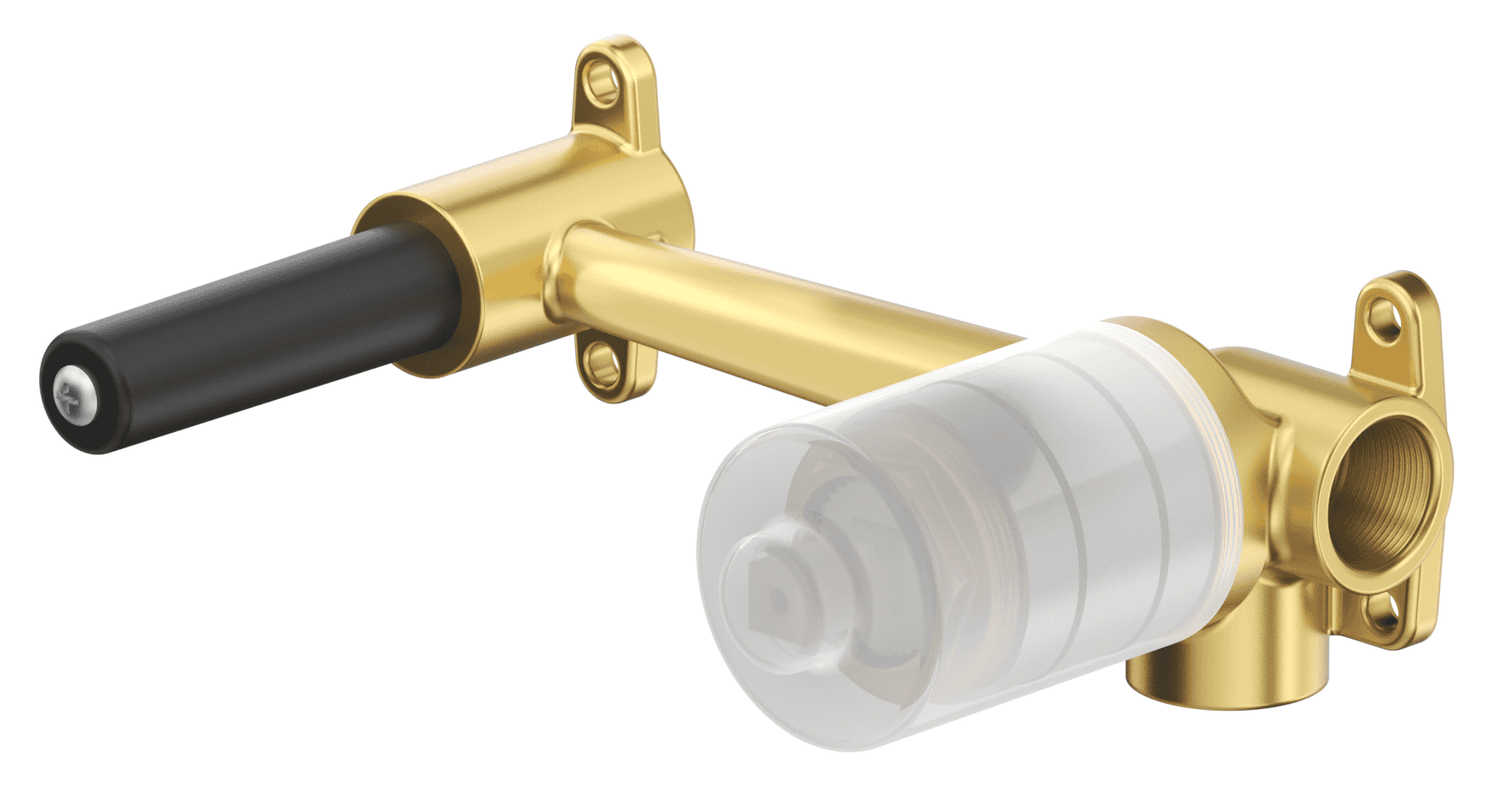

This in-wall body carries both halves of a wall-mounted basin set on one bracket: the mixer and the spout elbow, 160mm apart. It accepts the Tiago, Beki, Eleniko and Kaza wall-spout combo trim kits in either the one-plate or two-plate form, and the body is supplied separately.
The mixer housing is 46mm square with an 18mm spout outlet, setting between 48mm and 72mm behind the finished wall. It carries 26 litres per minute at 3 bar through standard 1/2 inch BSP inlets, with a CITEC cartridge. It is WaterMark approved; a WELS rating does not apply to a body.
The brass is left unplated, as the body is concealed in the wall. The visible finish comes from the trim kit, available in chrome, black, brushed nickel, gunmetal and French gold.
Wall spout combo body specifications
- Material: solid brass, unplated
- Suits: Tiago, Beki, Eleniko and Kaza wall-spout combo trim kits, one plate or two
- Spacing: 160mm between the mixer and the spout outlet
- Mixer housing: 46mm square
- Spout outlet: 18mm diameter
- Sets between: 48mm and 72mm behind the finished wall
- Cartridge: CITEC
- Inlets: standard 1/2 inch BSP
- Flow rate: 26 litres per minute at 3 bar
- Approval: WaterMark approved. WELS not applicable
- Guarantee: Lifetime parts or product replacement, lifetime colour.
The Tiago collection includes a basin mixer, a tall basin mixer, a sink mixer, a bath spout and shower mixers. Each product is available in the same five finishes, making it easier to coordinate the tapware throughout your bathroom, ensuite or kitchen.
Add the wall spout combo body to your cart, then choose the trim kit in your preferred finish. You can also view coordinating products on the Tiago Collection page.
