Description

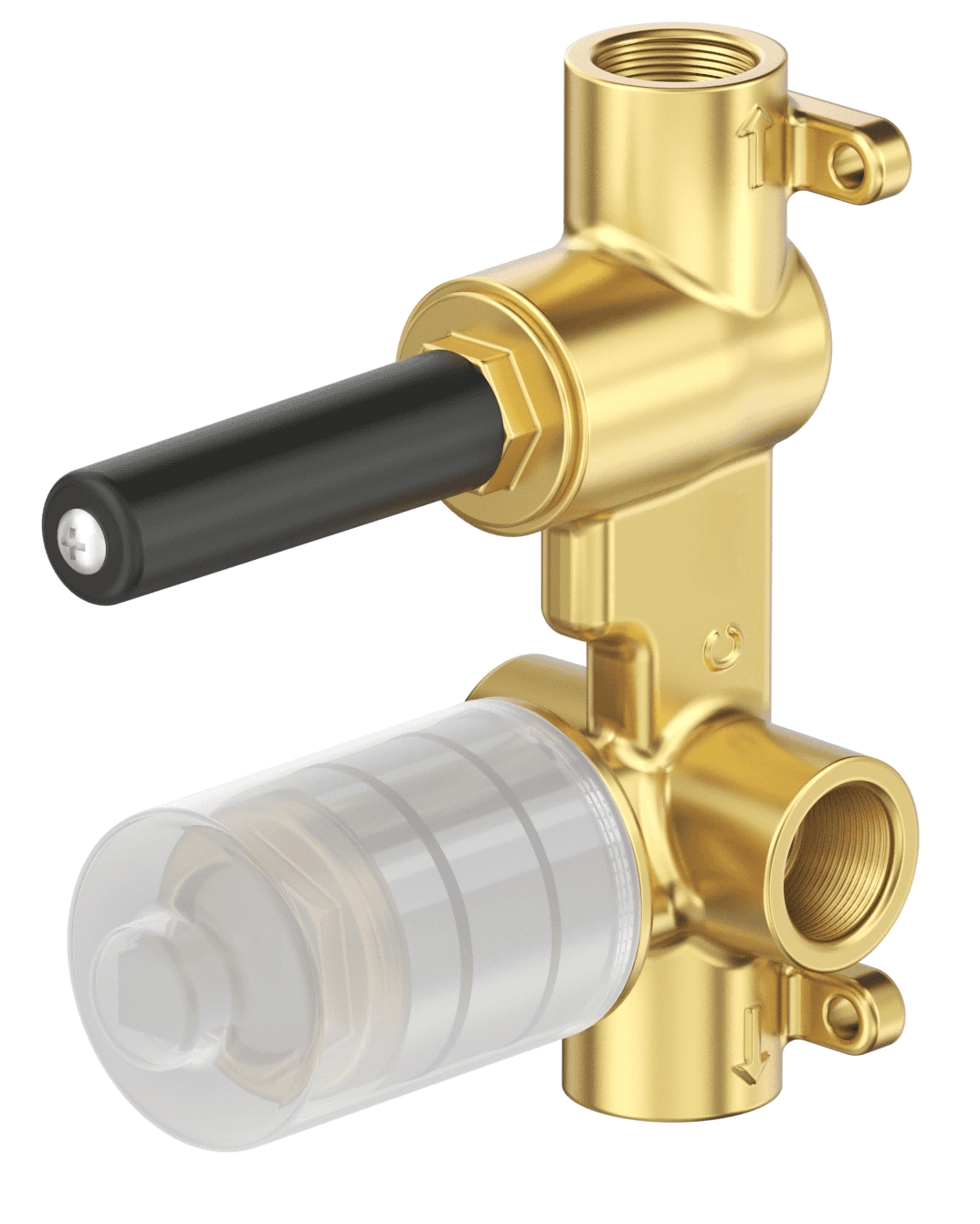

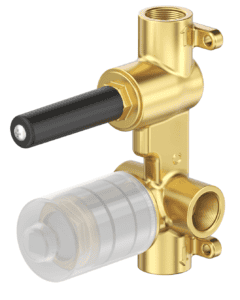

The Tiago, Beki, Eleniko, Kaza – Shower Mixer Diverter – Body Only combines a mixer cartridge and two-way ceramic-disc diverter in one shared concealed component.
The body measures 117mm long by 132mm high and adjusts between 54mm and 78mm behind the finished wall. It delivers 26 litres per minute at 3 bar through standard half-inch BSP inlets and accepts listed two-outlet trim kits.
Shared diverter-body specification
- Body only; visible diverter trim is ordered separately
- Compatible with Tiago, Beki, Eleniko and Kaza diverter trims
- 117mm length and 132mm height
- Sets 54mm to 78mm behind the finished wall
- CITEC cartridge and two-way ceramic-disc diverter
- Standard 1/2-inch BSP inlets
- 26 litres per minute at 3 bar
- Solid-brass, unplated construction
- WaterMark approved; WELS does not apply
- Lifetime parts or product replacement and lifetime colour guarantee
Select one named compatible diverter trim and verify the final wall build-up before rough-in. This body should not be matched to single-outlet trim kits or unlisted collections.
